Flat Patterns
We flatten any 3D geometry.
Sheet Metal Parts (3D geometry with a consistent material thickness)
Sheet metal parts with a consistent material thickness can be flattened quickly.
Flat 2D curve geometry is exported with contiguous curves in neutral formats (dxf, dwg, iges, etc).
Automatic flat pattern drawing generation is also available, including bend curve trace lines, radii, and bend directions.
Drawings export to dxf or dwg, and we can include a 2D PDF at no charge.

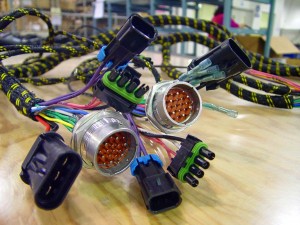

Wire Harness Flat Patterns
2D formboard layouts generated from your 3D wire harness.
Layouts can be printed full size (35.5" tall by any required length).
Includes wire diameters, curve segment lengths, connector callouts, intersect angles, sheathing, wire markers, and key angles.
Flat Patterns of Non‑Uniform Thickness Parts
We excel at flattening complex, non‑uniform thickness components.
Examples include automotive interior foam and ribbed gaskets.
Flat Patterns for Rubber Part Tooling
Contoured sealing gaskets for windshields, canopies, access covers, and more.
Die‑cut flat patterns for production tooling.
Send us your 3D part model in NX, Catia, STEP214, or IGES formats.
